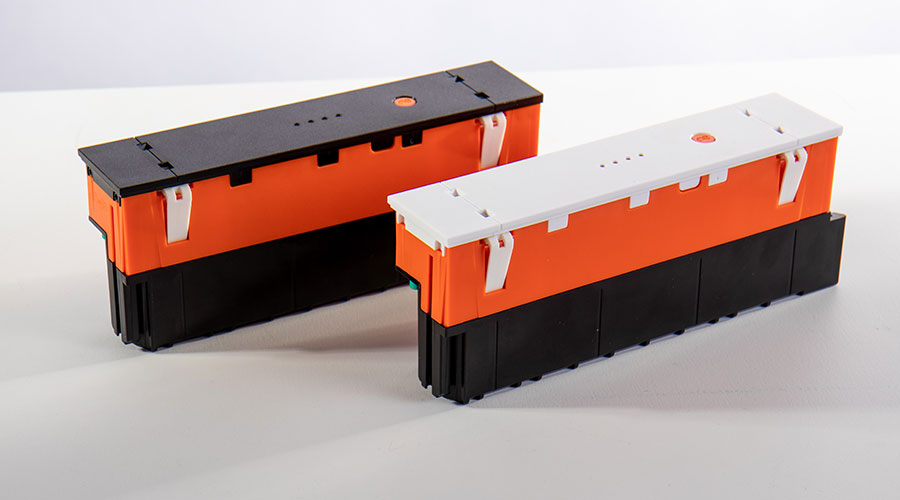

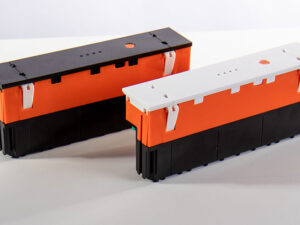

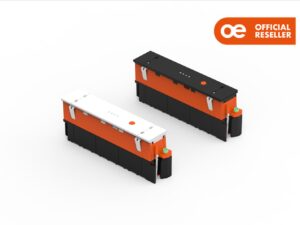

QIKPAC Battery

Description

QIKPAC which is a core component of our innovative and patented ANIMATE modular system heralds in a new era of power provision within office and educational environments.

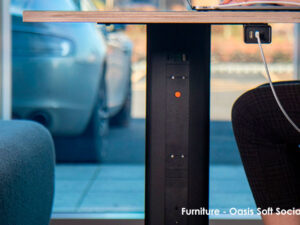

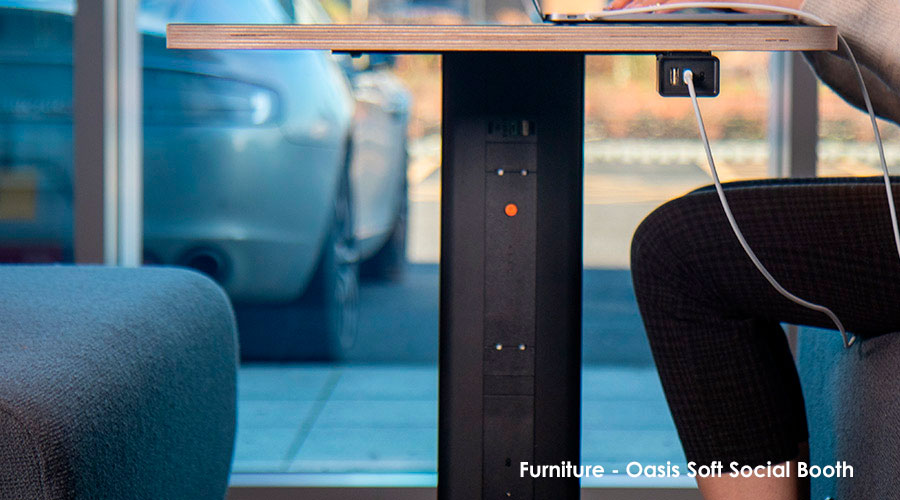

QIKPAC powered furniture can simply be located where needed without needing to worry about having a mains socket nearby. Alternatively our portable QIKPAC Carry enables workers/students to bring power to wherever they wish to work.

By utilising premium lithium-ion cells, a single QIKPAC can drive the TUF-R/HP USB Charger or ARC-H LD wireless charger for multiple hours of continuous use. Capacity can easily be increased by linking multiple QIKPAC units, allowing more time between charges for high current applications such as mobile TV screens. Multiple charging options enable QIKPAC’s to be recharged in situ or at a charging dock depending on the application.

With this newfound freedom, the workspace or venue becomes a flexible, easily configurable scene, perfect for our new agile ways of working.

Technical Specifications
Battery Capacity 240Wh (Equivalent to 9540mAh)
Useable Capacity 200Wh
Output Voltage 21.0V – 29.4V
Input Voltage 30.0V (Maximum)
Maximum Output Current Per Port 6A
Total Shared Maximum Ouput Current 12A
Features Short Circuit Protection
Over Current Protection
Under Voltage Protection
Battery Overvoltage Protection
Unit Over Temperature Protection
Safety Standards IEC/UL 62368-1 (Safety)
IEC/UL 62133-2 (Li-ion Safety)
EN/IEC 61000-6-3 & 61000-6-1
(EMC)
FCC 15B (USA-EMC)
UN38.3 (Shipping)
Weight 1.3kg
Operating Temperature 10-35C
Charging Range 5C to 45C
Discharging Range -20C to 60C
Storage Temperature Up to 3 Months: -20C to 40C
Longer Duration : 10C to 20C (Ideal)
QIKPAC should be stored at 40-60% charge (2 LEDs) in a low humidity environment (less than 70% RH) with no corrosive gases and no condensation on cells and charged yearly to keep them at this level.
Estimated Charge Cycles 1,500 (With 70% capacity remaining, will depend on type of load and use)
Estimated Life Span 5+ years
Charging Times (Using QIKPAC Charger Base)
Single battery 5 – 7 hours
2 batteries 6-8 hours
3 batteries 9-11 hours
4 batteries 13-15 hours
Product Type:
Portable 240Wh lithium–ion battery pack for use in office type environments

Construction:
Premium lithium-ion ‘18650’ cells and control circuitry within a High strength fire retardant polycarbonate body

Colours:
Black or white fascia options

Power connections:
Wieland GST08 50V 6A DC power in and out connectors

Charging Options:
• QF30 PSU for in-situ charging

• QIKPAC Charger Base for remote charging 3 x QIKPAC

• Charging Shoes can be built into OEM furniture

USB Charger Options:

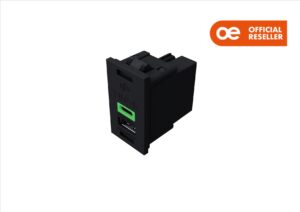

Clip on or remotely located TUF HP A+C module (e.g. QF05 TUF, PICCOLO DC)

Shipment:
QIKPAC batteries are shipped by OE in UN38.3 certified dangerous goods packaging.

Installation:

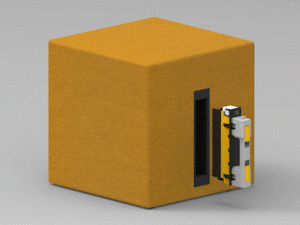

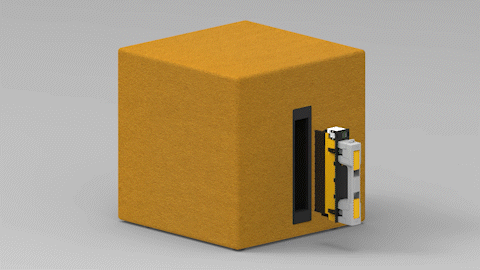

Integrated QIKFIT system mounting clips for direct in furniture mounting – with optional quick release removal tool

Recycling:
End of life QIKPACs should be recycled in accordance with prevailing regulations for the recycling of portable li-on battery packs in the country of use

QIKPAC Carry – for portable use:
QIKPAC can optionally be supplied fitted in the QIKPAC portable carry case – see QIKPAC CARRY datasheet

Quality and Testing:
All QIKPAC Battery units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.

CE/UKCA Marking:
QIKPAC Battery is CE and UKCA marked by OE Electrics as complying with:

• EU Battery Directive 2006/66EC as amended by 2013/56/EU

• Electromagnetic Compatibility Directive 2014/30/EU

• ROHS Directive 2011/65EU as amended by 2015/863EU plus the equivalent UK regulations

Examples of linking batteries to increase capacity
Direct link (in a single mounting slot)

Cable linked (if installed in separate locations)

Unit Dimensions:

For cutout dimensions for multiple batteries and bespoke solutions please contact us
