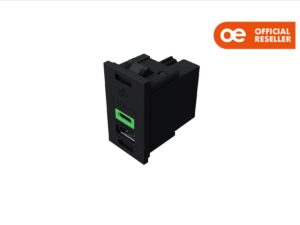

DRD-QF05 TUF-R black zoom

Hover

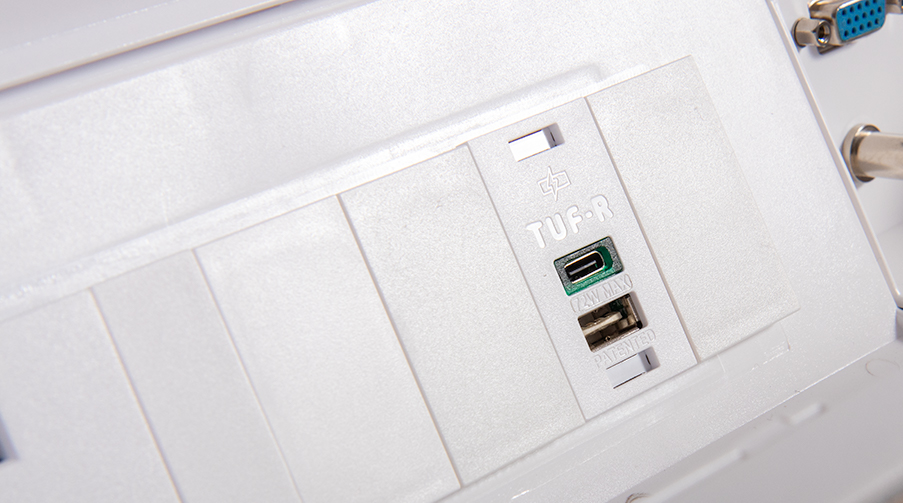

QF5-TUF-R-HP-White-Genie-web zoom

Hover

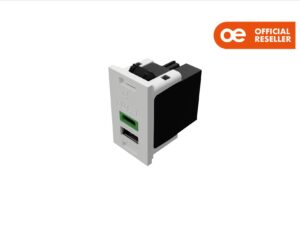

TUF- white zoom

Hover

DRD-QF05 TUF-R black

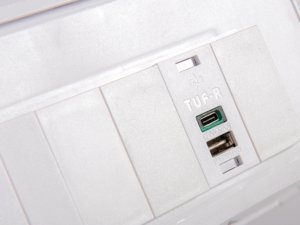

QF5-TUF-R-HP-White-Genie-web

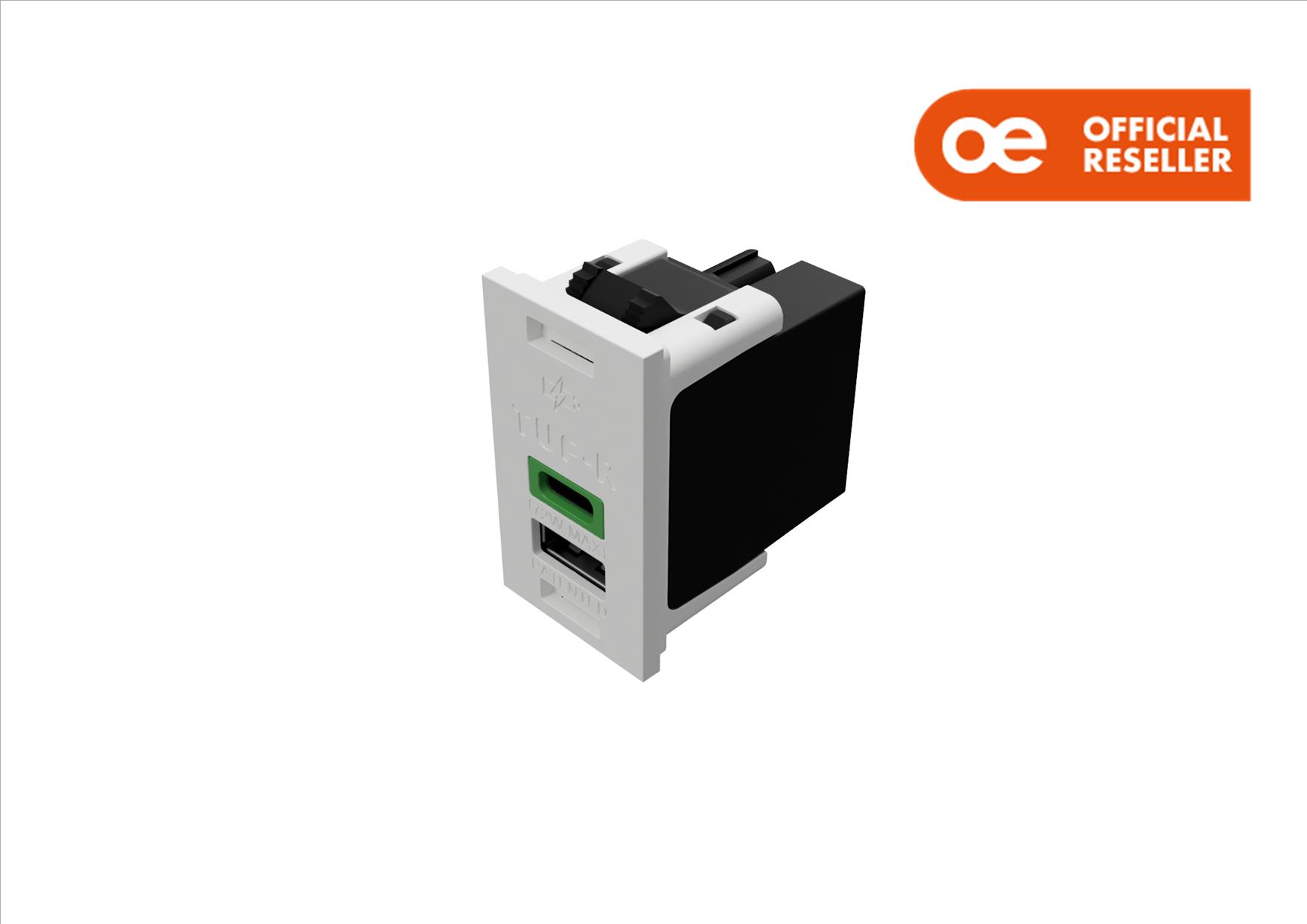

TUF- white
Full Screen

QF05 TUF-R®/HP

Compatible with QikFit units and QikTray
Patented unit replaceability
Universal Type C Laptop charging
Intelligent Device Recognition (IDR) for optimal fast charging on Type A port

Made to Order – Please ask for aprox. lead times

TUF Datasheet

Price on Request
SKU: DRD-QF05 TUF-R®/HP Category:

Description

With its small form factor, QF05 TUF-R®/HP is perfect to integrating into furniture. When combined with our 70W Power Supply Unit, QF TUF-R®/HP offers up to 60W delivery from the Type-C USB, ideal for laptops, and up to 12W from the Type-A USB which is ideal for phones and tablets. QF05 TUF-R®/HP also integrates perfectly with our existing QikFit range of products suitable for commercial offices.

TUF-R®/HP combined with our QF30 PSU, splits the USB outlets from the AC/DC power supply thereby minimising the visible footprint whilst providing class leading USB charging.



Technical Specifications

USB Charging Outlets

1 x Type C (Reversible)
1 x Type A (Reversible)

Power In connector

Male GST08 DC connector

Rated Total Output Power

72W MAX
Output Voltages & Currents

TYPE C: MAX 60W
20V/3A, 15V/3A, 9V/3A, 5V/3A (PD3.0)
3.3 – 11.0V / 3.2A (PD PPS Mode)
QC 2/3.0 5V/3A, 9V/2A, 12V/1.5A

TYPE A: MAX 12W
5V / 2.4A IDR BC1.2,
Apple 12W Mode
Samsung Fast Charge
Input voltage 24 – 30V DC

USB Connector Min. Insertions

Type A 10,000
Type C 10,000

Over Current Protection

Yes. Digital control at 3.3A. Auto reset with LED flash.

Short Circuit Protection

Yes. Digital control at 3.3A. Auto reset.

Over Temperature Protection

Auto Power Reduction to PD 45W Mode.
20V/2.25A, 15V/3A, 9V/3A, 5V/3A

Rated Operating Temperature

0° TO 25°C

User Replaceable USB module

Yes

Certifications – Safety

IEC 62368-1 : 2014
UL62368-1 cTUVus

Certifications –EMC

EN61204 : 2018
EN 50121-3-2 (railway)
FCC part 15 (B)

Certifications ROHS

EU 2015/863

Construction:

High strength fire retardant polycarbonate

Colours:

Black or white RAL 9003 front fascia

Power cord options:

GST08 cable

Quality and Testing:

All QF05 TUF-R®/HP modules are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch:

• Visual: Configuration and appearance.

• USB charger: Output voltage and resistance

“We test every pin on every connection in every socket”

CE Marking:

QF05 TUF-R®/HP modules are CE marked by OE Electrics as complying with:

• Electromagnetic Compatibility Directive 2014/30/EU
• Low Voltage Equipment Directive 2014/35/EU
• ROHS3 Directive 2015/863

Unit Dimensions:

Cable Options

GST08 cable can be extracted from QF05 TUF-R®/HP body  for shallow depth fitting

Integrated PSU

External PSU
