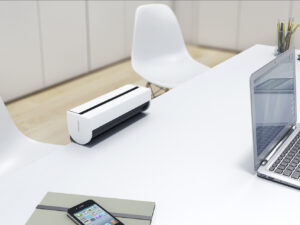

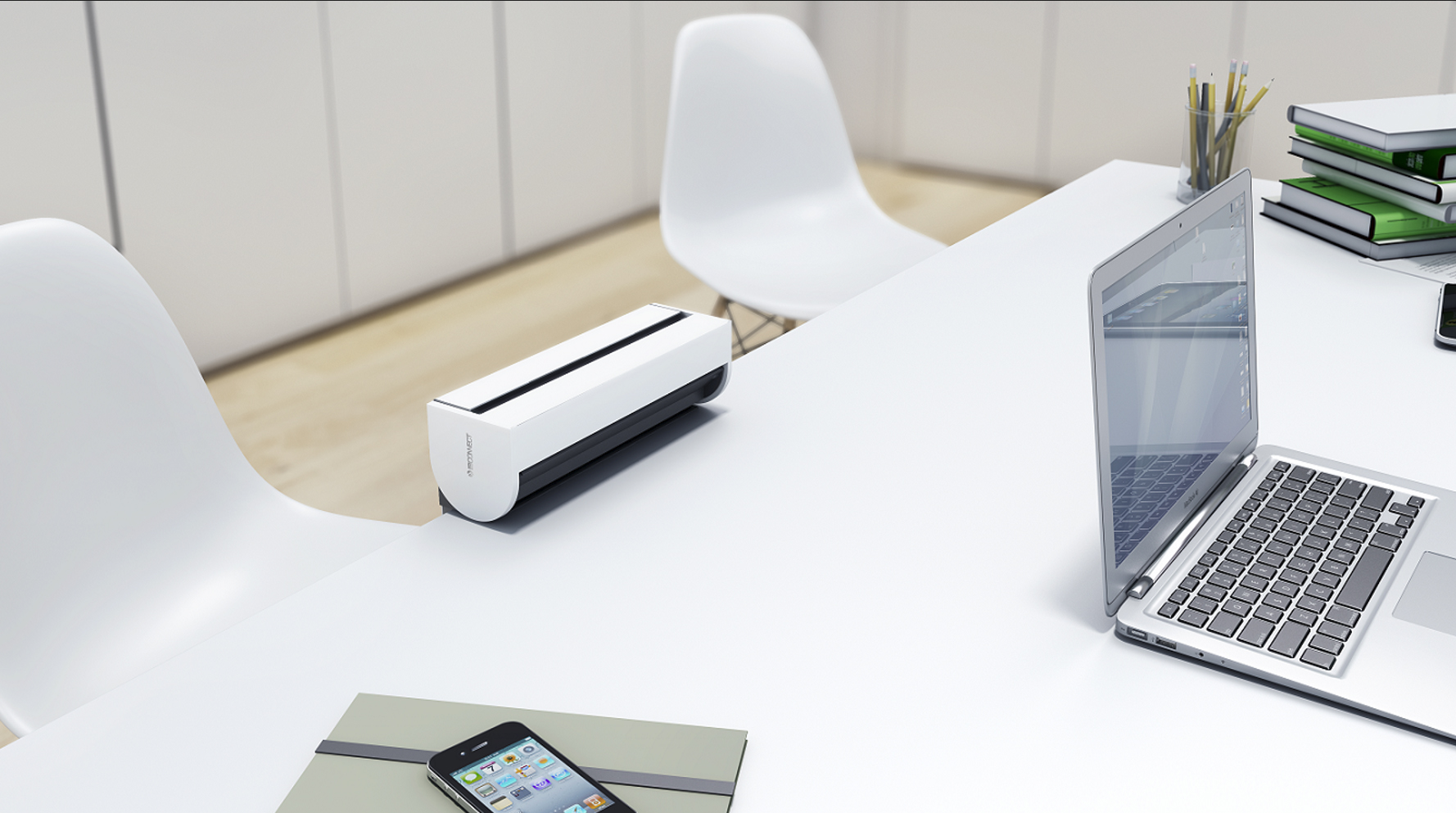

Prisma – Uk & European sockets

Please enquire with your specification

Applications:

  • Office workstation furniture.
  • Executive tables.
  • Hotel rooms.
  • Glass furniture.

Features:

  • Installation on the surface, for thicknesses of 1mm to 30mm.
  • Conceals power cables.
  • Hidden fixation system.
  • Cable organisation space at the top.
  • Quick and easy change of multimedia modules

Free!

SKU: DRD- Prisma Categories: ,

Description

Description

Installation on the surface
Its installation system is fixed to the surface. This makes it possible to secure it quickly and simply without machining the table. Any additional cable tray or securing accesories are needed.

Design

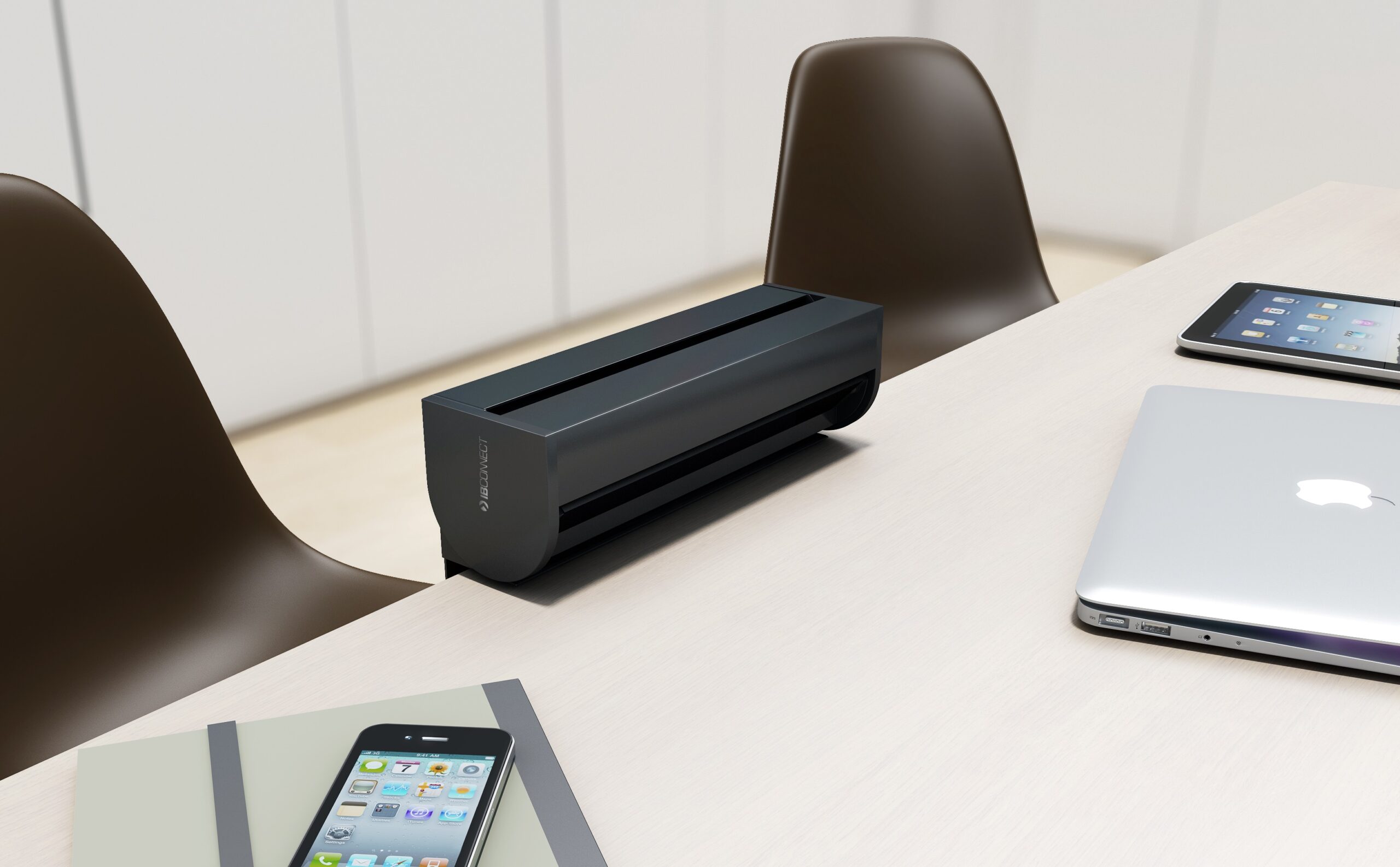

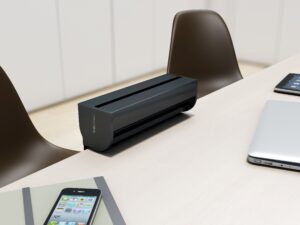

Its rotating lid hides the electrical sockets and multimedia elements when they are not in use. The entire cabling and fixation system are concealed, making it an ideal solution even for glass finishes.

Flexibility for connection
Combinations of electrical sockets, USB chargers, data and multimedia elements are allowed.

Alternatives

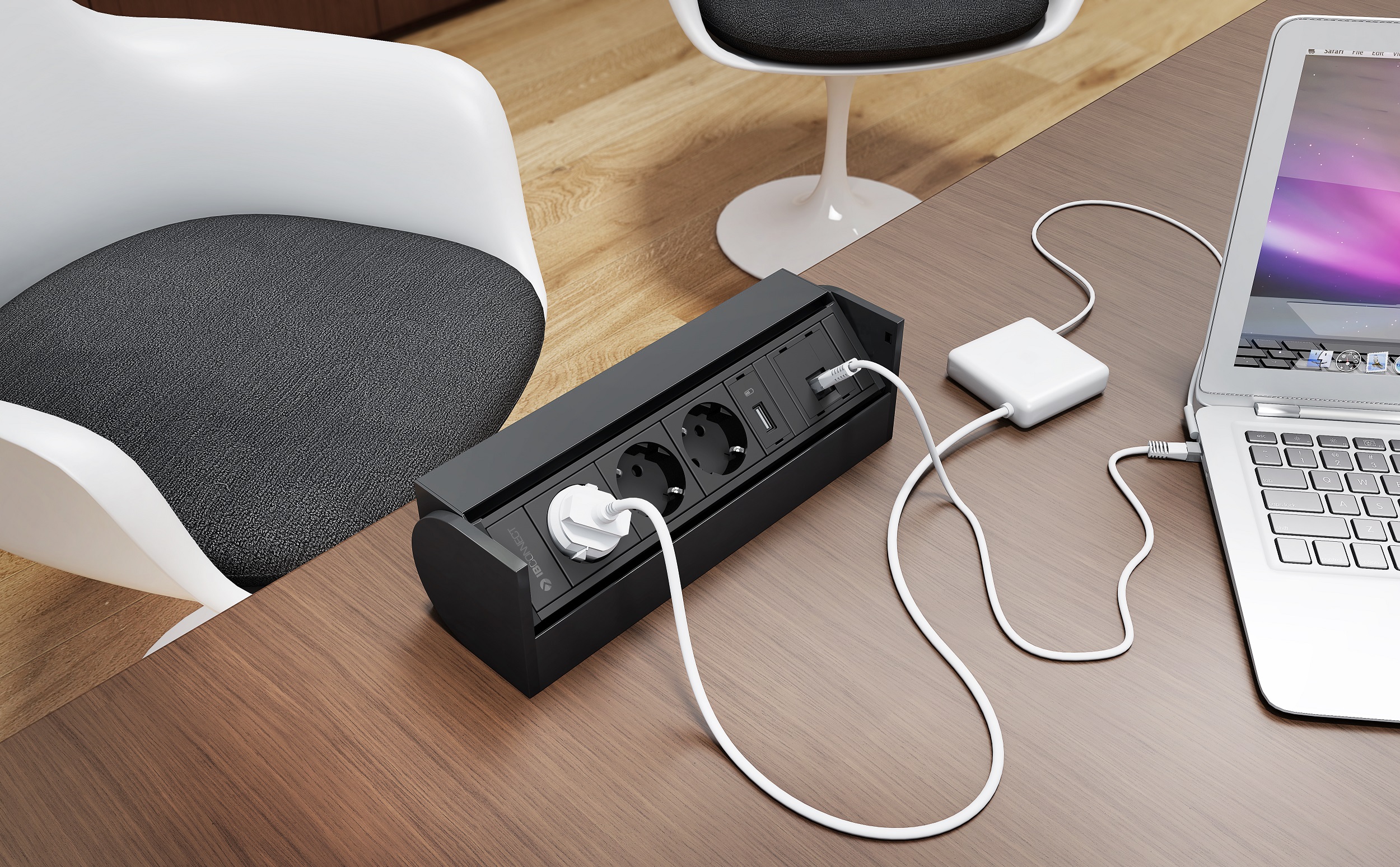

Prisma Surface
Its installation system allows it to be placed anywhere on the table, easily adapting to any thickness.

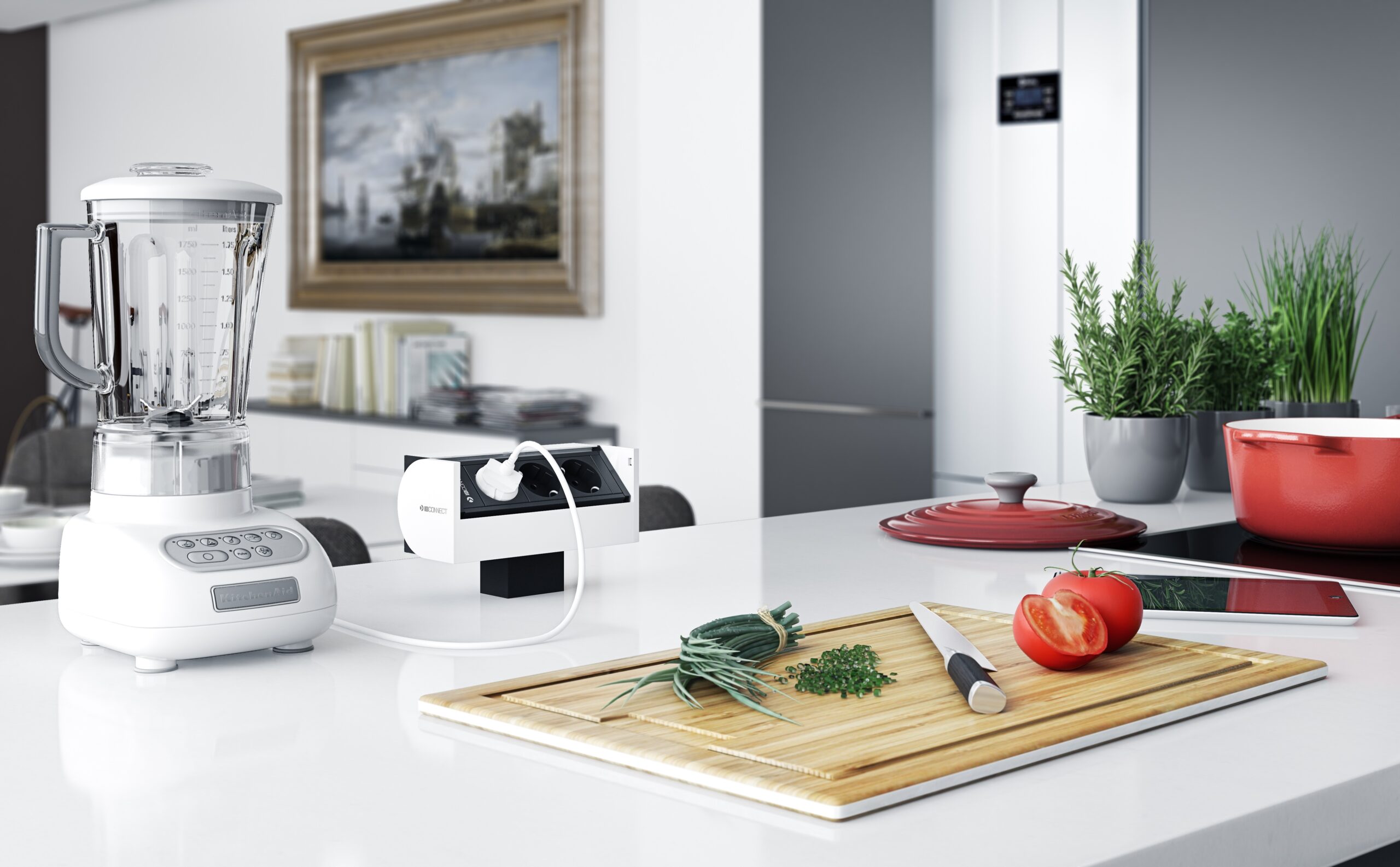

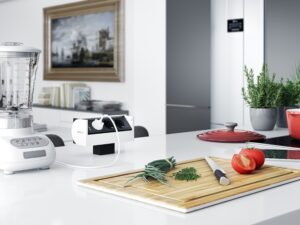

Prisma Support
Its raised installation is easily cleaned, making it the best solution for kitchens.

Technical specifications

  • Structure made of white (RAL 9016) or black (RAL 9011) lacquered aluminium profile.
  • Electric power supply by means of aluminium frame with black lacquered finish (RAL 9017).
  • Opening by means of 90° turn with locking and auto-return.
  • Power input through power cable with rapid connector on end.
  • Fixation system by means of adjustable clamps from 1mm to 30mm.

Details that make us different

  • WhiteAvailable in white.
  • Multmedia configurableConfigurable multimedia.
  • A medidaCustom-made.
  • CompatibleCompatible with “Ultra-Compact USB Smart Charging System” up to 60W.

Measurements:

Part numbers:

PRISMA – 3 X SOCKET OUTLET + 1 X EMPTY MODULE

3 socket outlets fully wired.
1 empty module with rear direct access.
Power input through cable with male rapid connector at end.
Fixation system by means of adjustable clamps (1mm – 30mm).
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.
Reference: 26103001

Prisma

PRISMA – 2 X SOCKET OUTLET + 2 X EMPTY MODULE

2 socket outlets fully wired.
2 empty modules with rear direct access.
Power input through cable with male rapid connector at end.
Fixation system by means of adjustable clamps (1mm – 30mm).
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.
Reference: 26103002

Prisma

PRISMA – 2 X SOCKET OUTLET + 1 X USB CHARGER TYPE A+C + 1 X EMPTY MODULE

2 socket outlets fully wired.
1 USB charger connector type A (5/10W) + 1 USB charger connector type C (15W).
1 empty module with rear direct access.
Power input through cable with male rapid connector at end.
Fixation system by means of adjustable clamps (1mm – 30mm).
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.
Reference: 26203108

Prisma

OTHER OPTIONS AVALIBLE – Please enquire for spec required.
