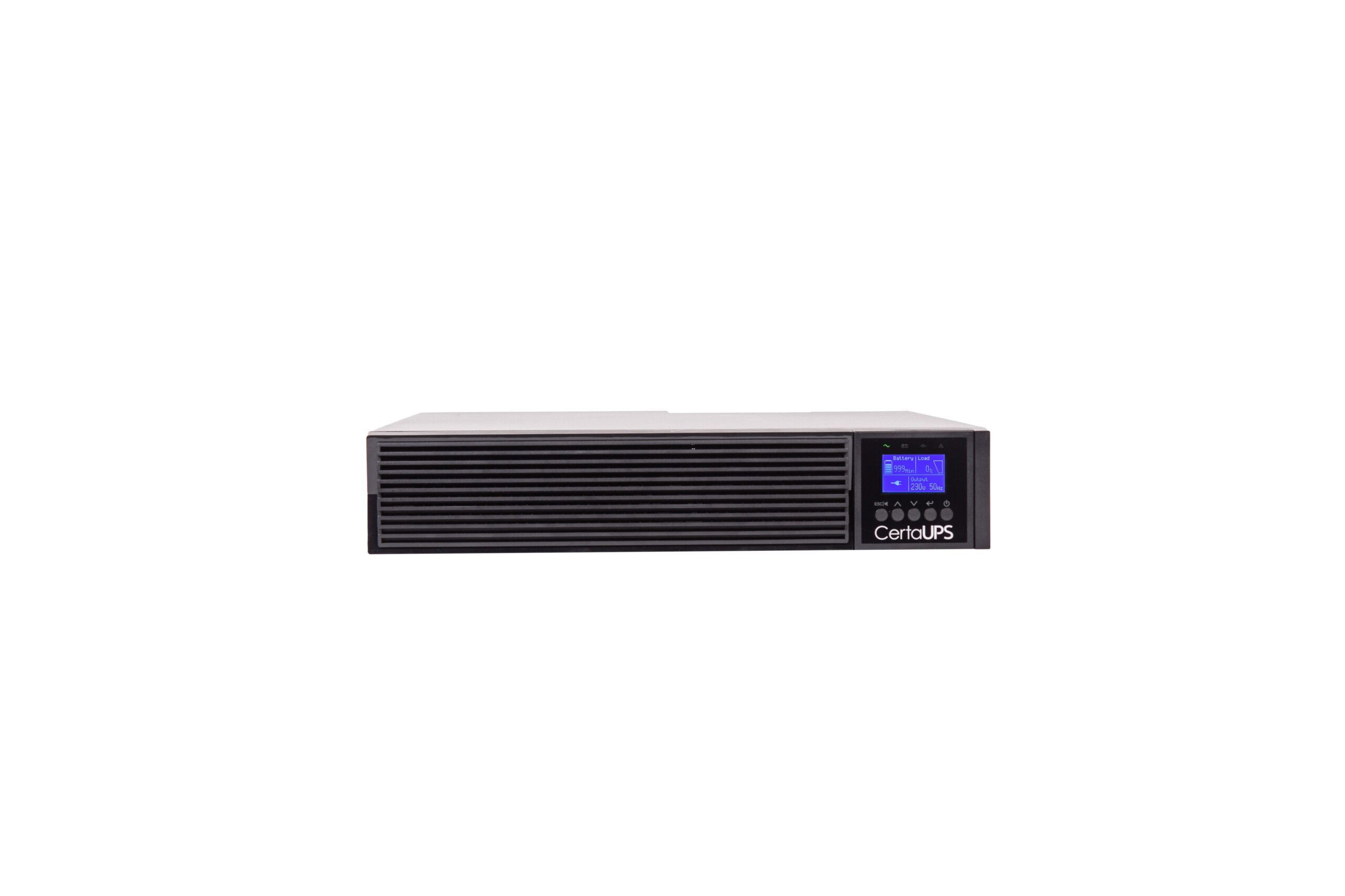

CertaUPS C650R kVA and 10kVA

As a unity power factor UPS system, The C650R is a highly efficient online double conversion unit presenting numerous benefits to the user. Main applications include small data centres, server rooms, IT facilities, telecoms and networking. The C650R series is available in two power ratings 6kVA and 10kVA

User Manual

£2,518.00

SKU: DRD-CERTA650R Category:

Description

Overview

The CertaUPS C650R UPS system is an online double conversion uninterruptible power supply with unity power factor for rack installation. Rack rails come as standard with the C650R giving users the flexibility to place it in a server rack or have it as a free standing tower unit. The C650R comes complete with out of the box connectivity. An unlimited number of compatible CertaUPS UPS systems can be monitored any where in the world with the IoT monitoring software available for Android and iOS.

Key Features

  • Unity power factor
  • Expandable runtime
  • Out of the box connectivity

Additional Features

  • Requires only 2U of rack space
  • Unity power factor
  • Online double conversion topology
  • Out of the box connectivity with IoT monitoring app
  • High efficiency up to 95%
  • Smart LCD display
  • Expandable runtime
  • Rackmount rails included

Technical Specification

WARRANTY 3 Year Parts
RATING KVA 6 / 10
DIMENSIONS (WxDxH) 438W x 540D x 88H (2U)
WEIGHT 14 (C650R-060-B) / 16 (C650R-060-C) 14 (C650R-100-B) / 16 (C650R-100-C)
INPUT PHASE Single Phase
INPUT VOLTAGE 220/230/240VAC
INPUT VOLTAGE TOLERANCE RANGE 176-276VAC (100% load), 120-276VAC (50% load)
INPUT FREQUENCY 50/60Hz
INPUT FREQUENCY TOLERANCE RANGE ±10%
OUTPUT OUTPUT PHASE Single Phase
OUTPUT POWER FACTOR 1
OUTPUT WAVEFORM Sine wave
OUTPUT VOLTAGE 208/220/230/240VAC
OUTPUT FREQUENCY 50/60Hz (±10%)
BATTERY RUNTIME 5.5 minutes (C550R-060-B), Dependent on battery capacity (C500R-060-C), 3.5 minutes (C550R-100-B), Dependent on battery capacity (C500R-100-C)
BATTERY DC VOLTAGE 180VDC (6kVA), 240VDC (10kVA)
BATTERY CHARGE CAPACITY 1.4A (C650R-060-B) / 4A (C650R-060-C), 2A (C650R-100-B) / 4A (C650R-100-C)
MECHANICAL AC OUTLETS IEC C13*2, C19*1 and terminal block (C500R-060-B), IEC C13*2, C19*2 and terminal block (C500R-060-C) IEC C19*4 and terminal block (C500R-100-B), IEC C13*4, C19*2 and terminal block (C500R-100-C)
OPERATING TEMPERATURE TOLERANCE 0 – 40°C
STORAGE TEMPERATURE TOLERANCE -15 – 40°C
RELATIVE HUMIDITY <95% (non-condensing)
OPERATING ALTITUDE TOLERANCE <3000m
COMMUNICATION RS232, USB, WiFi and Ethernet
OPTIONAL COMMS SNMP / dry contact relays / Modbus
PARALLEL Up to 3
FUNCTIONS EPO, Expandable Battery Modules, Rack/Tower Flexibility, Rotatable LCD, Dual Input
