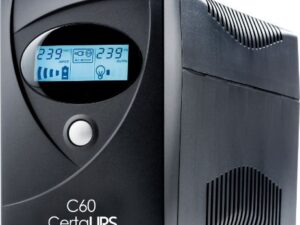

CertaUPS C60

The C60 series is available in four power ratings 800VA, 1000VA, 1500VA and 2000VA.

Standalone Tower

Line interactive uninterruptible power supply with simulated sinewave output

User Manual

Product Brochure

£88.00

SKU: DRD-CERTA-C60 Category:

Description

Overview

The CertaUPS C60 single phase UPS series is one of the most practical and compact UPS systems available. Ideal for smaller backup power requirements such as CCTV, EPOS, small office hardware and PC workstations, the C60 is a line interactive UPS with simulated sinewave output.

Key Features

Line interactive (VI) technology with automatic voltage regulator (AVR)

Automatic start with a cold start feature

Intelligent monitoring software with USB connectivity

Additional Features

  • Auto shut down in the event of a mains fail
  • Smart LCD display
  • Inbuilt protection for modem & telephone
  • Extended battery life
  • Cold start feature
  • Separate IEC power outlets for surge suppression
  • RJ11 & RJ45 filtering for connection of telephone, modem and router lines
WARRANTY 3 Year Parts
RATING KVA 0.8 / 1 / 1.5 / 2
DIMENSIONS (WxDxH 100W x 285D x 142H (800VA) / 146W x 350D x 160H (1000VA) / 146W x 397D x 205H (1500VA/2000VA)
WEIGHT 4.9 / 8 / 11.1 / 11.5
INPUT PHASE Single Phase
INPUT VOLTAGE 220/230/240VAC
INPUT VOLTAGE TOLERANCE RANGE 162-290VAC
OUTPUT PHASE Single Phase
OUTPUT POWER FACTOR 0.6
OUTPUT WAVEFORM Simulated Sinewave
OUTPUT VOLTAGE 220/230/240VAC (±10%)
OUTPUT FREQUENCY 50/60Hz (±1Hz)
OUTPUT EFFICIENCY >97%
BATTERY RUNTIME 3 minutes (800VA), 3 minutes (1000VA), 3 minutes (1500VA), 2 minutes (2000VA)
BATTERY DC VOLTAGE 12VDC (800VA), 24VDC (1000/1500/2000VA)
BATTERY CHARGE CAPACITY 0.5A
MECHANICAL AC OUTLETS 3*C13 (Battery) and 1*C13 (Surge only) (800/1000VA), 5*C13 (Battery) and 1*C13 (Surge only) (1500/2000VA)
OPERATING TEMPERATURE TOLERANCE 0 – 25°C
STORAGE TEMPERATURE TOLERANCE 0 – 40°C
RELATIVE HUMIDITY <95% (non-condensing)
OPERATING ALTITUDE TOLERANCE <1000m
COMMUNICATION USB
OPTIONAL COMMS N/A
PARALLEL N/A
FUNCTIONS Off-Mode Charging, AVR, Auto Restart, Cold Start, RJ11 and RJ45 Filters, LCD
