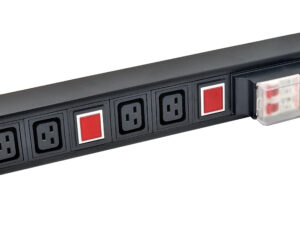

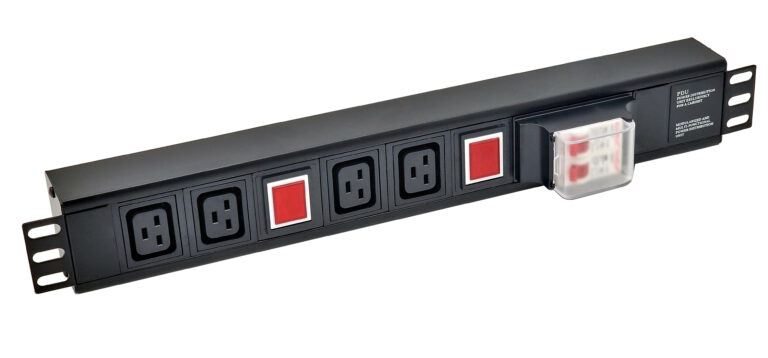

4 way C19 MCB PDU

Description

A 4 way 1.5U horizontal PDU, with IEC C19 sockets. Split into 2 branch circuits, each
protected by a covered 16A MCB.
Terminated with a 5m LSZH 4.0mm² 3 core lead, to open end.
Features a 6mm external earth screw
STANDARD PRODUCTS
Part Code Description
HC19/4/EN/MCB 4 way C19 PDU in 2 branch, 16A MCB per branch, 5m LSZH lead
to open end

TECHNICAL SPECIFICATION
In the box 1x PDU, 1x set of cage nuts
Construction Aluminium extrusion, PVC sockets and fascias, 2mm steel endcaps
Max voltage 250V
MCB specs 230/400V~
50Hz
IEC60898-1
6000A
C curve 16A
Mains lead length 5m
Mains lead spec 4.0mm LSZH
Switch Single pole with neon indicator
Compliances RoHS; WEEE; CE; UKCA
