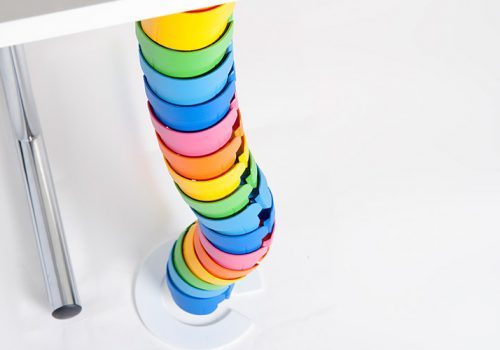

Flexible umbilical
Available in white, clear, silver or black
Extendable sections
Wide range of fitting options

Contact us for a quote!

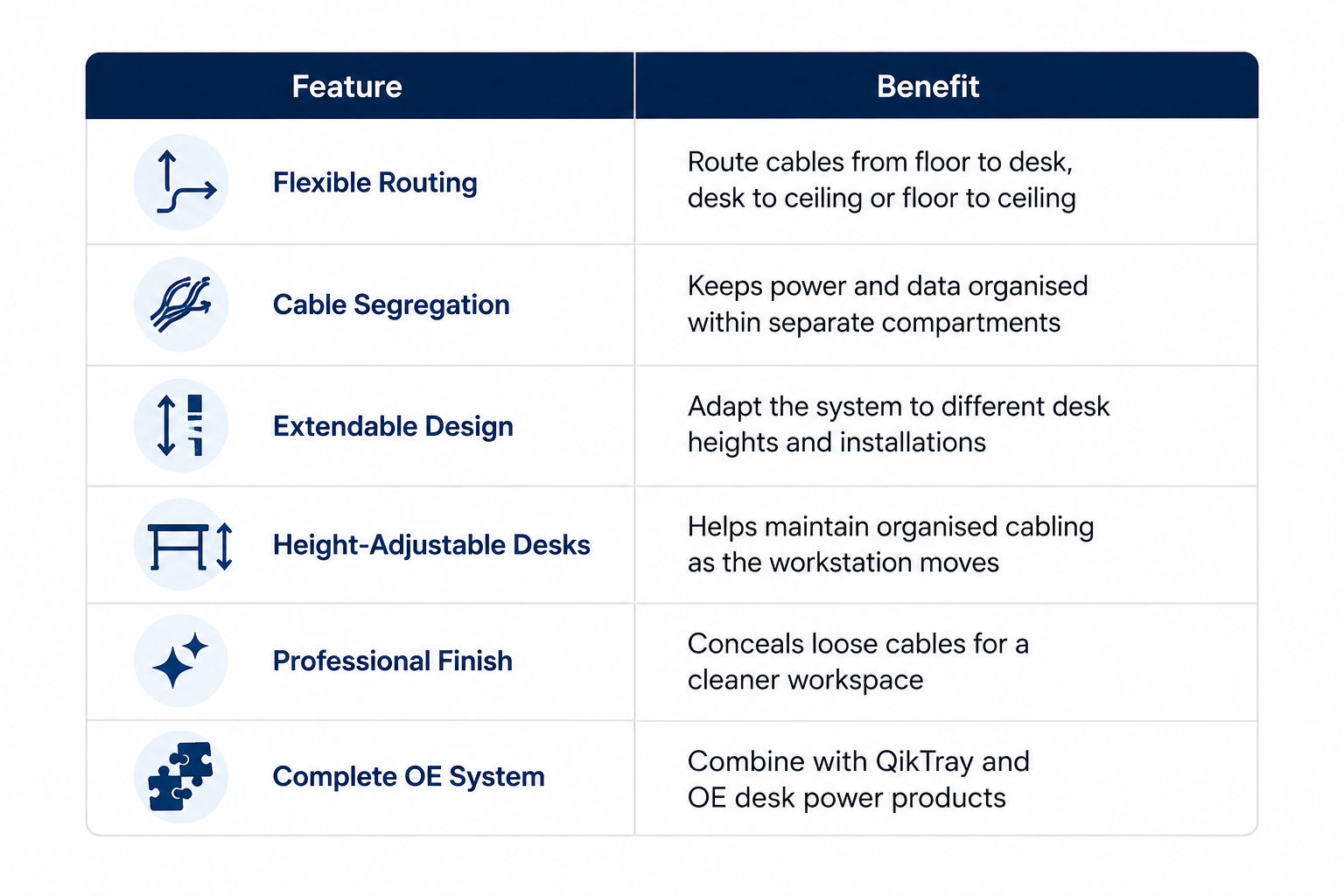

Key PATHFINDER features include :

• A unique PATHFINDER GROMMET for feeding under floor cables directly into the umbilical
• Extendable sections to allow fixed desk, height adjustable desk or ceiling termination
• A wide range of floor, desk and ceiling fixing options to provide total cable management of cables
• Internal segregation for power and data cables to comply with BS regulations

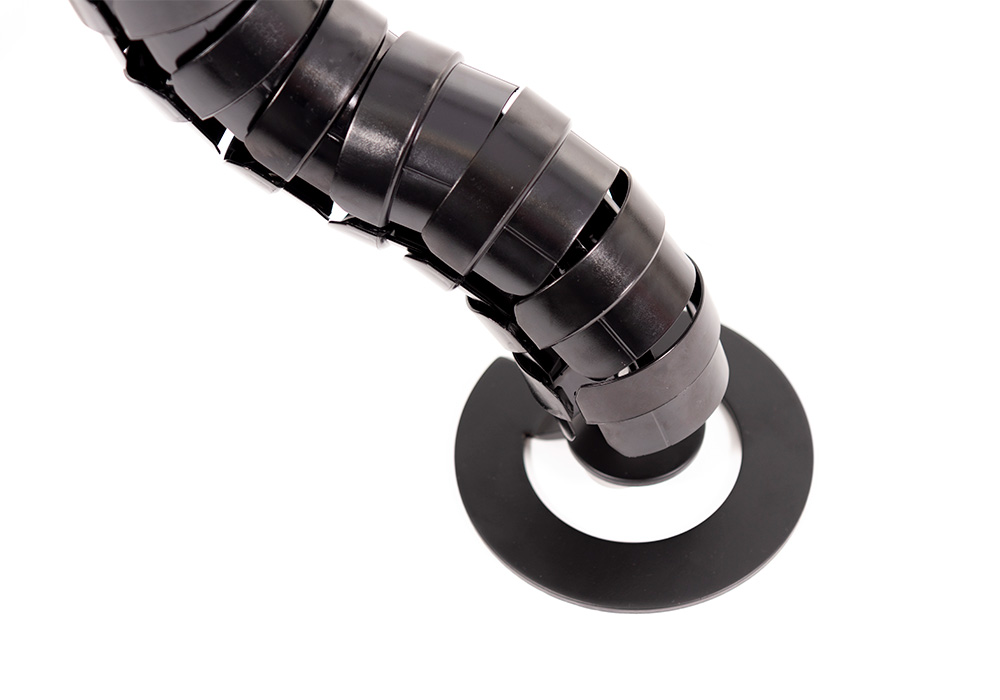

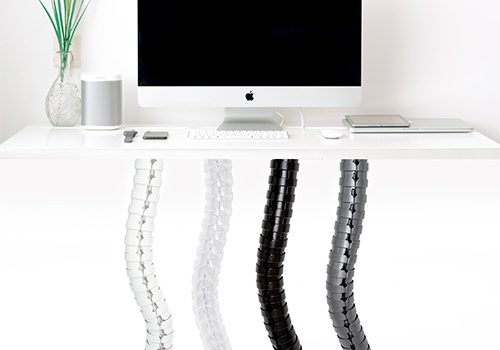

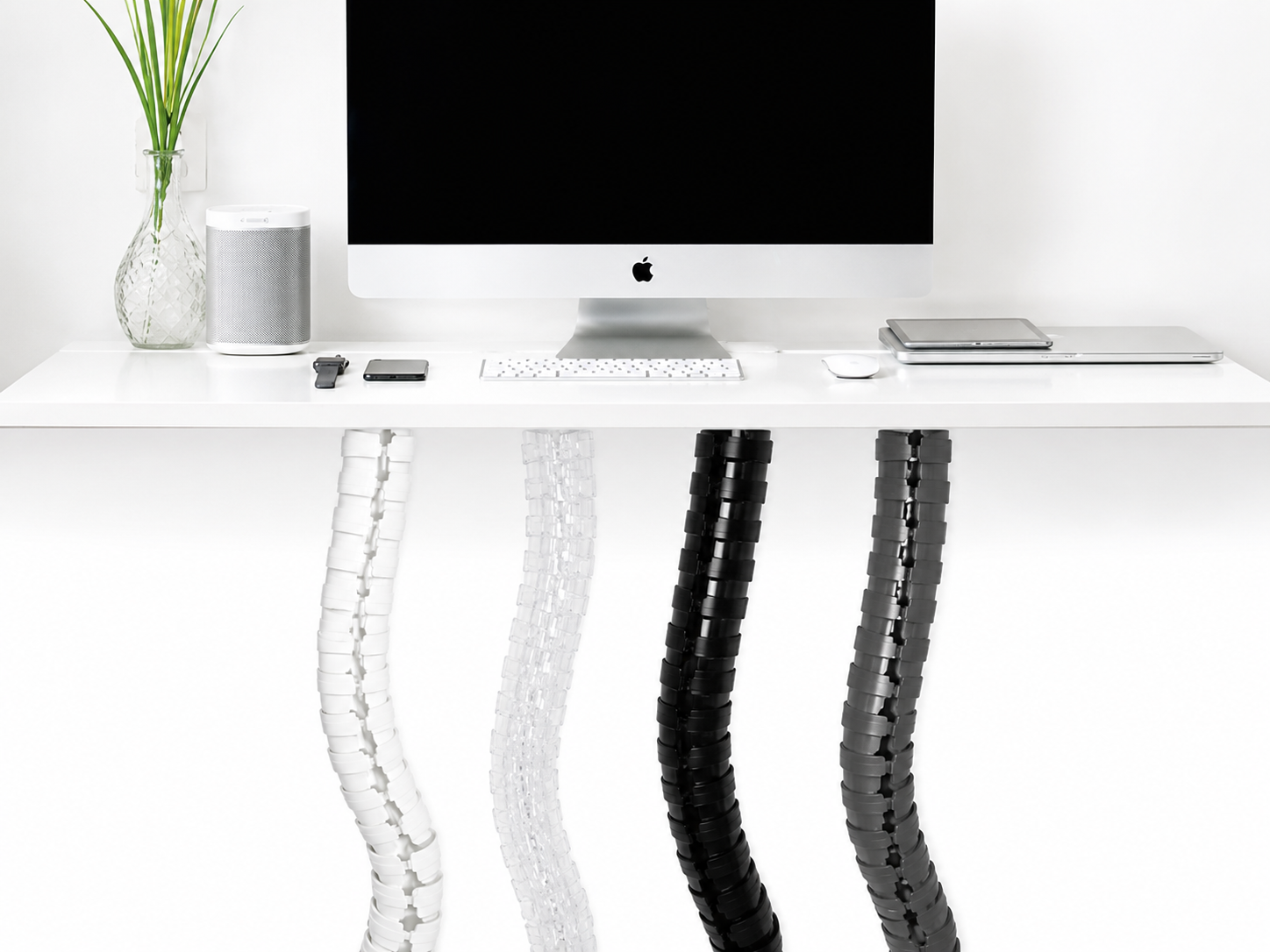

• Flexible umbilical in white, silver, black or clear polycarbonate

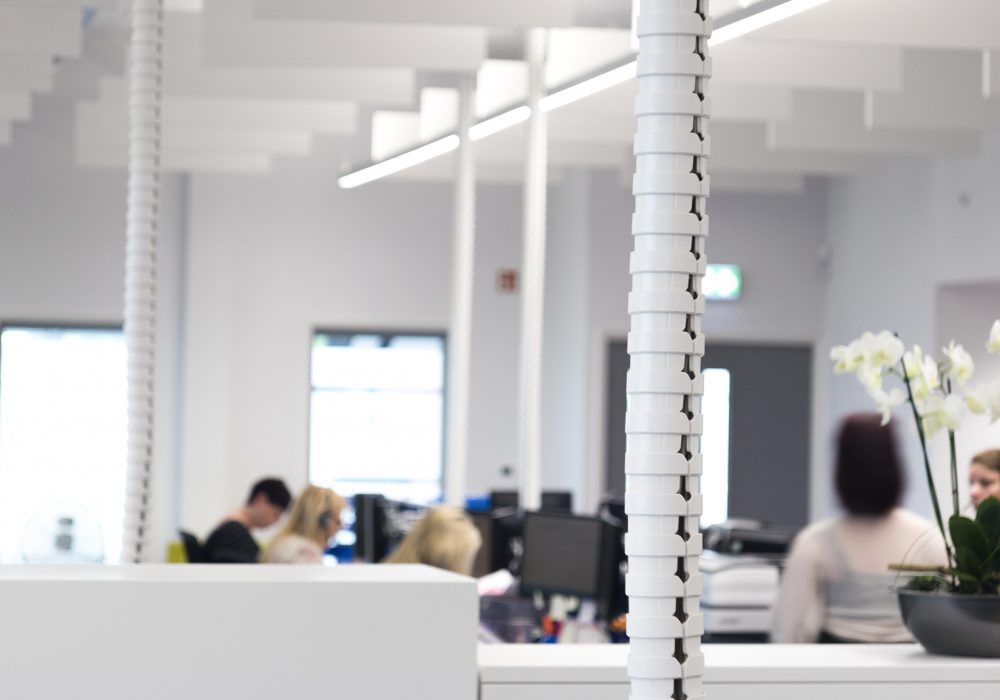

Ceiling to desk

PATHFINDER Ceiling Collar gives a clean finished look when PATHFINDER drops through false ceilings. Designed to split in half, the Ceiling Collar can be clipped around PATHFINDER after it has been hung and cables ‘zipped in’

PATHFINDER Desk Flange

Top fix:

PATHFINDER Top Mount can be: screwed to the underside of a desk top or meeting table; snapped into a .98”(25mm) hole in steel/plastic panels (such as QikTray Adaptor); or, (with integrated wire gripper), used to tension a ceiling hung umbilical.

Bottom fix:

PATHFINDER Bottom Mount can be: screwed to any suitable surface; used with the Pathfinder Weighted Base; or, clipped into the Pathfinder Desk Flange for ceiling hung applications.

Weighted base:

Qiktray adaptor:

QikTray Adapter can also be used on compatible trays. Check with OE Electrics outside these sizes for alternative/bespoke bracket.

Grommet:

PATHFINDER Floor Grommet is the first of its kind to enable TOTAL CABLE PROTECTION from desk to underfloor, when used in conjunction with Pathfinder Umbilical.

Designed to fit into industry standard 5 inch / 125-128mm cutouts, the Pathfinder Floor Grommet can be used as a conventional floor pass-thru, allowing power / data cabling, including .63” (16mm) flexible conduit, to exit via the Side Lids.

But, if used in conjunction with Pathfinder Umbilical, using Pathfinder Grommet Adaptor, it can even accommodate multiple .8”-1” (20mm / 25mm) data conduits as well.

Segment:

Ceiling collar & desk flange:

Standard Fixings

• PATHFINDER Top fix
• PATHFINDER Bottom fix
• Rigid unbilicolumn
• QikTray Adaptor

Desk to Ceiling Fitting Instructions
Floor to Ceiling Fitting Instructions

Top fix

PATHFINDER Top Fix can be: screwed to the underside of a desk top or meeting table; snapped into a 25mm hole in steel/plastic panels (such as QikTray ADAPTOR); or, (with integrated wire gripper) used to tension a ceiling hung umbilical.

Bottom fix

The PATHFINDER bottom fixing can be; screwed to any suitable surface; used with the Pathfinder Weighted Base; or, clipped into the Pathfinder Desk Flange for ceiling hung applications.

Umbilicolumn

Where a self-supporting floor to ceiling RIGID umbilicolumn is required  Pathfinder can be ordered with steel supporting rods and a steel top disc.   The is an ideal option where no suitable ceiling beam is available to suspend the standard Pathfinder tension cable from and is an excellent alternative to conventional solid power poles.

QikTray Adaptor

The QikTray ADAPTOR* can be used to fit PATHFINDER onto QikTray cable tray for TOTAL CABLE MANAGEMENT
*QIKTRAY ADAPTOR CAN ALSO BE USED ON COMPATIBLE TRAYS OTHER THAN QIKTRAY
Check with OE for alternative/bespoke bracket
